Hız Kapısı Turnike
Created with Pixso. Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB

Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB

Marka Adı: Turboo
Model Numarası: M3620-AB
Adedi: 1 adet
fiyat: negotiable
Teslim Zamanı: 7-15 iş günü
Ödeme Şartları: L/C, T/T
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Sertifika:
CE, ISO9001,FCC,RoHS,etc.
Boyut:
3200*210*1020mm
Malzeme:
Toz Boyalı 2,0 mm SPCC
Geçiş genişliği:
600-900mm
Sensör:
Işık Perdesi 80 Nokta + 20 çift sensör
Sürücü:
Servo fırçasız 100W
Denetleyici:
Servo Kontrolü + Sensör Lojik Kontrolü
Güç:
220W
Ambalaj bilgileri:
Ahşap Sandık Paketi
Yetenek temini:
Aylık 1000 adet
Vurgulamak:

Security turnstile gate M3620-AB

,

Airport immigration inspection turnstile

,

Speed gate turnstile with AB control

Ürün Tanımı

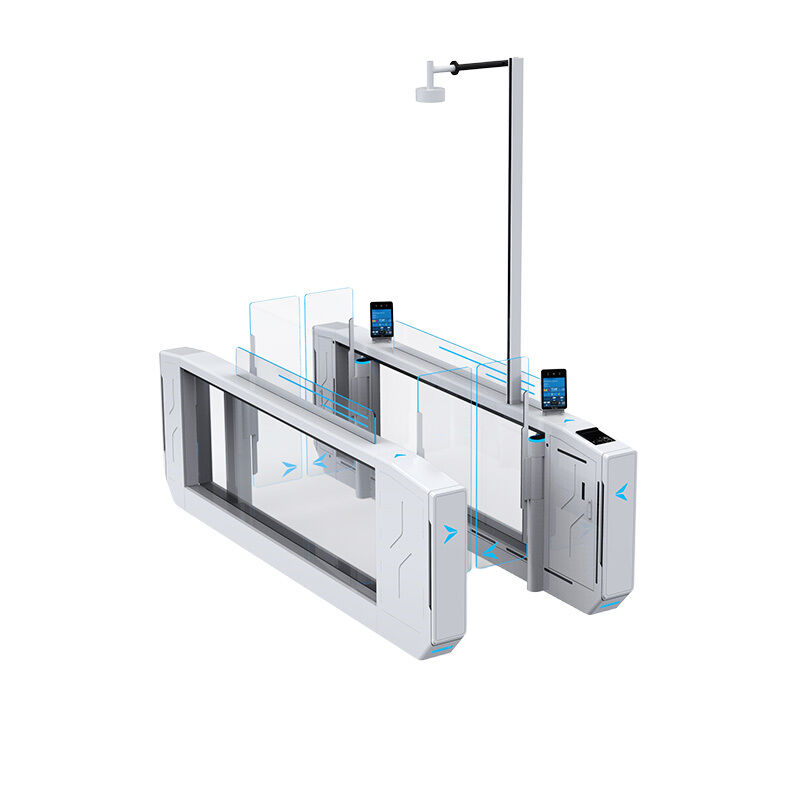

Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB
Product Overview

The M3620-AB Turnstile Gate is engineered for high-security airport immigration and inspection checkpoints, featuring advanced access control technology and robust construction for reliable performance in demanding environments.

Functions & Features
  • Reasonable and reliable design with low noise operation and extended service life
  • Advanced security functions including anti-tailgating and anti-reverse pass protection
  • Configurable card memory settings with "with memory" or "without memory" options
  • Automatic reset function - gate returns to locked state if not passed within set time
  • Infrared anti-clip protection during both open and running states
  • Compatible with multiple access technologies: IC, ID cards, scanning, and face recognition
  • Dual operation modes: open or closed configurations
  • Multiple working modes including two-way card reading and one-way card reading
Size Drawing
Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB 0
Technical Specifications
Parameter Specification
Size 3200 × 210 × 1020 (mm)
Chassis Top cover: 2.0mm cold roller with powder coating
Housing: 2.0mm cold roller with powder coating
Filling Panel: 10mm
Movement Mechanism: Servo sliding gate
Door panel: 10mm Transparent PC
Pass Lane: 600-900mm
Electronic Control Control board: Servo standard board + AB linkage
Motor: Brushless servo 40:1 100W
IR sensor: Light Curtain 64 Points + 20 pairs + 3D Visual Module
Air switch: 2P
Power Supply 24V 500W / 12V 150W
Accessories Connection cable: 5m 2×1.0m² RVV
Network cable: 5m with crystal tips on both ends
Package Pearl cotton: Foam liner
Cardboard box: 3260 × 270 × 1080
Case Examples
Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB 1 Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB 2
